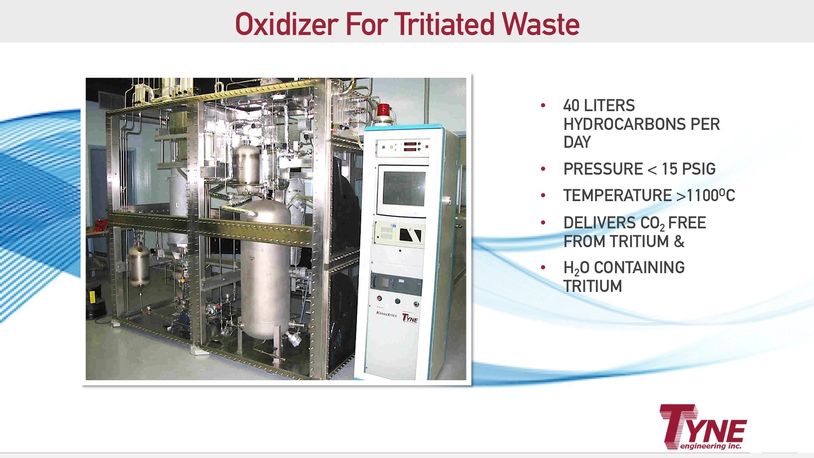

Used by Active Waste Facilities , Research Establishments, Nuclear Facilities and Fusion Laboratories. Model: 7030-OXZR-001 (Catalytic Oxidizer) was designed for converting organics containing tritium, to water that contains the tritium. This conversion is necessary for tritium removal processes because it is easier to extract tritium for safe storage from water than from hydrocarbons.
Model: 7030-OXZR-001 is a plant designed and built by Tyne Engineering to take hydrocarbons containing tritium, and to separate out the carbon. This is accomplished by first heating the hydrocarbons to high temperature over a catalyst with an abundance of oxygen to reduce the organics to carbon dioxide and water. The carbon dioxide together with excess oxygen is then filtered, dried, monitored for tritium and released to stack.
The water so formed will be filtered, purified and stored in readiness for further treatment in an electrolyzer for reduction to hydrogen isotopes which can subsequently be separated to remove tritium.
To contain any permeated tritium, the process is conducted within a glovebox. The drummed waste material is filtered to remove impurities and any solids, and is then injected into the oxidizer chamber. High temperatures are required for this operation together with excess oxygen. Tyne designed a Hastelloy® alloy chamber for this purpose and designed an oxygen/hydrocarbon injection nozzle to maximize surface area in the oxidization zone.
When the hydrocarbons have been completely oxidized, the heat is removed in a spray condenser, which will also contain all dissolved impurities and some insoluble components. These are collected and purified in preparation for either the long term storage of the water, or the electrolysis of the water in preparation for the full removal of tritium in a concentrator and isotopic separation system.
