- Simple to use, with only one operating switch with four settings: Off, Sample, Pump, Set Up.
- Gamma Compensation with four large ion chambers arranged in a cruciform configuration. Two chambers are used for measuring the air sample, and two are for compensation.
- Less than 10% inaccuracy in 20 mR/hr field
- High Sensitivity. The current amplification circuit employs ultra-low leakage technology. Each chamber has its individual amplifier, increasing the Signal-Noise Ratio of the analog circuit.
- Radon compensation is provided by the analog filter circuit designed to separate the radon spike. The software can distinguish the radon spike from the tritium signal occuring as a slow-change signal.
- Ion-traps are built into each ion chamber.
- Noble gas compensation.
- Direct gamma measurement is provided using an installed GM tube.
- Decontamination by purging of all 4 ion chambers can be achieved with use of the centrally installed cartridge heater.
Compensation for gamma background is crucial in tritium measurement because a gamma field of 1mR/Hr will generate 500 times the ionization generated by l uCi/m3 of tritium. Tyne designed the four ion chambers in a symmetrical arrangement with each chamber connected to an ultra sensitive electrometer amplifier and filter. All signals pass through an ADC converter and a micro-processor calculates and displays the measured tritium values. The micro-processor also monitors air flow rate using a solid-state flow meter and controls the chamber temperatures during the heated purge cycle.
Instrument output includes analog (0-5V, 4-20mA); relay alarm contact (30VDC, 1A) for operation of external equipment; and communication (RS232/RS485) to enable downloading or recording of information onto a computer. The TFT full color LCD display mounted on the surface plate clearly displays instrument readings in both digital and graphic format to show real time measurements and trends.

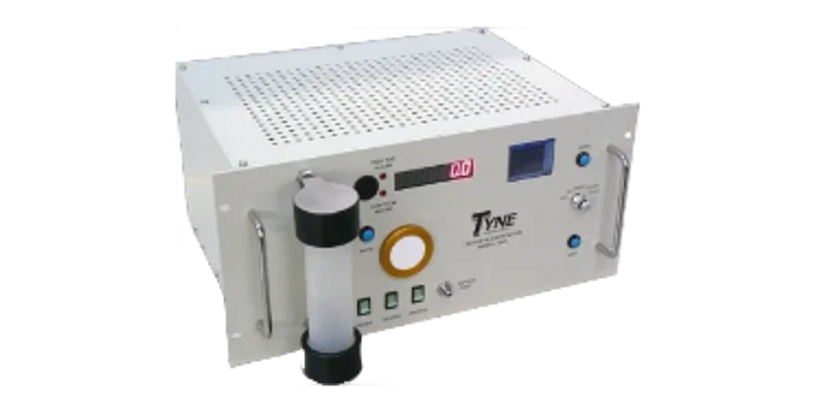

The 7045 continuous tritium monitor is based on the platform of a very successful hand held tritium air hydrogen-3 monitor that Tyne manufactures. The differences are that the wall mount room tritium monitor version, which can also be put into a 19” rack cabinet is larger. The ion chambers of which there are four, are about 3 times as large as in the 7043 hand held instrument increasing the sensitivity by a factor of three. Additionally the wall mounted instrument has a more powerful long life pump, is accessible for maintenance from the front for such as filter replacement and dryer media replacement, and for attachment of a sniffer probe with a 15 meter reach.
The larger ion chambers, that are provided in a compact package, enable a sensitivity that precludes the need for P-10 gas, which is a nuisance to operators as it must be continuously supplied and the ion chambers also avoid the need for a less reliable flow proportional counting system. The 7045 ion chambers are robust and reliable. If they do become contaminated they can be purged by application of a heater mounted inside the units while continuous flow through the chambers is initiated.
The diaphragm pump for the unit has an EPDM diaphragm, found to be most reliable and long lasting in the field, the pump is quiet and replacement of a diaphragm is simple and takes only a few minutes.
On the front of the unit is mounted a sniffer probe. This is used in the event that the instrument detects a tritium leak, and the operator wishes to sniff round a seal for example which may be suspected of leakage, to help to trace where the leakage is coming from. The sniffer is supplied with a lead that extends up to 15 meters.
The unit has a touch sensitive screen through which settings can be changed and alarm levels set etc. The instrument displays a light in the event that an alarm is activated, and also an audible alarm that can be cancelled without canceling the light. This touch screen panel is actuated by a two level password, one giving access to Health Physics personnel only and another to enable operators to adjust alarms etc. Although the touch screen is ideal for the purposes indicated above, it may not be bright enough to see from across a room, and for that reason a large digital read-out is also provided for better visibility by the operators. The batteries of our hand held version have been replaced in the wall mounted version by power supplies to avoid the maintenance otherwise necessary.
An additional feature of the Tyne instrument is that it is also equipped with a colour changing dryer indicate when renewal is necessary. The dryer enables the operator to evaluate if the tritium measurement is elemental or HTO. In the case of a signal in a moist environment where all tritium will be HTO, the use of the dryer also enables the operator to isolate and alpha signal.
This leading continuous H-3 monitor has been a best seller worldwide for many years.
